Shackle

Grade s bow type screw pin shackles to as2741

MIT shackles is including bow type screw pin shackles, bow type safety screw shackles, dee type screw pin shackles, dee type safety pin shackles, capacity from 0.5Ton to 12 Tons.

Features :

Capacity Range: 1 to 12 Tons
Working Load Limit and Traceability codes shown as permant marking on body and pin.
Made of alloy steel.
Special products engineering available to fit your special lifting, tie down and pulling needs.

Technical Parameters

Download Technical Parameters

Technical Parameters

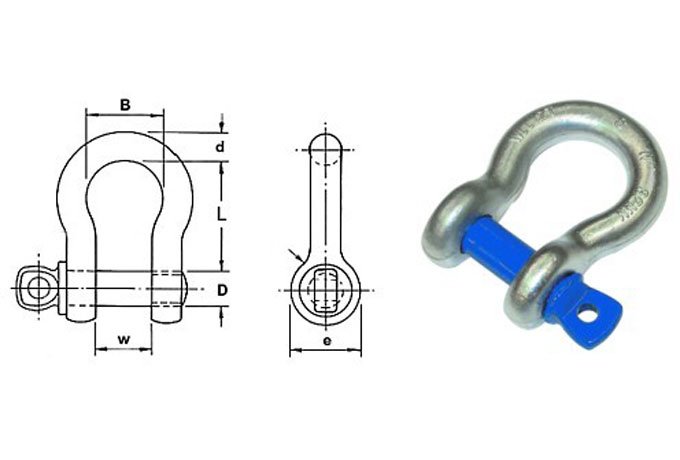

Model WLL/Tonnes SIZE/d/mm D/mm W/mm B/mm L/MM e/mm
MSH033A 0.33 5 6 10 15 22 14
MSH050A 0.5 6 8 12 20 29 17
MSH075A 0.75 8 10 13 21 31 21
MSH100A 1 10 11 17 26 37 25
MSH150A 1.5 11 13 18 29 43 27
MSH200A 2 13 16 21 33 48 33
MSH320A 3.2 16 19 27 43 61 40
MSH470A 4.7 19 22 32 51 72 48
MSH650A 6.5 22 25 37 58 84 54
MSH850A 8.5 25 29 43 68 95 60
MSH950A 9.5 29 32 46 74 108 67
MSH1200A 12 32 35 52 83 119 76
