Chain Block

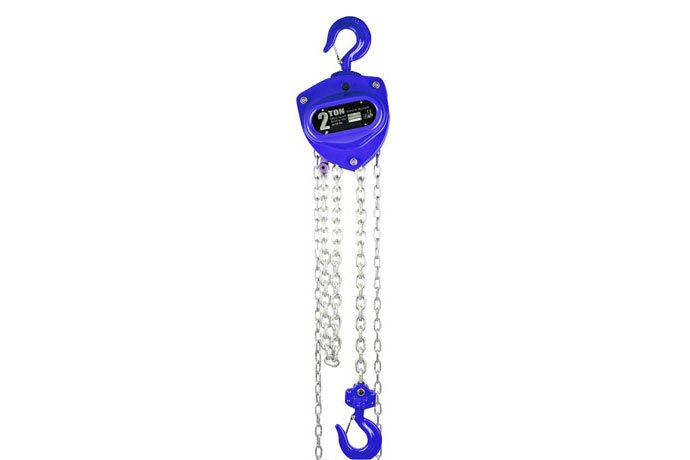

MCH-A series Hand Chain Hoists are compact and lightweight with low headroom for easy installation.

Formed Steel Covers: Both the gear case cover are pre-formed steel providing a ruged structure to resist shocks and bumps.
Housing Protection: Hand wheel cover is designed to protect brake from moisture and dirt.
Brake Mechanism: Regardless of load, the instant acting asbestos free load brake will hold the load and is designed for long lift.
Load Chain Guide: Insures accurate feeding of load chain onto load sprocket and assists in protecting the load sprocet from debris and moisture.
Tail Chain Stop: Prevents load chain from falling out upon reaching maximum point in lowering.
Load Chain: Grade 80 alloy steel chain conforms to ISO specification.
Upper and Lower Hooks: Forged steel hooks are equipped with safety latches.

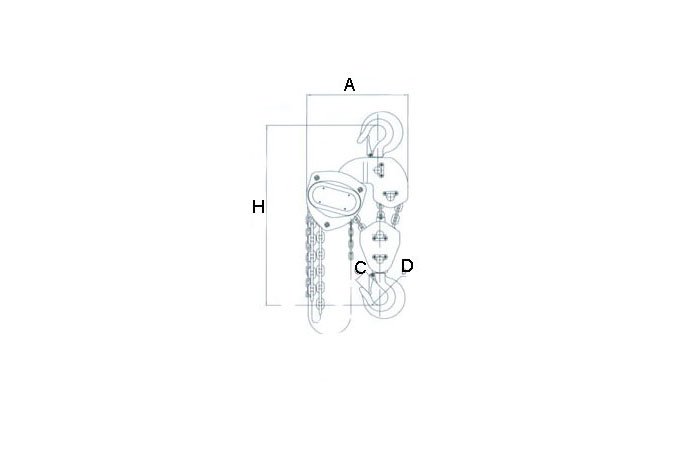

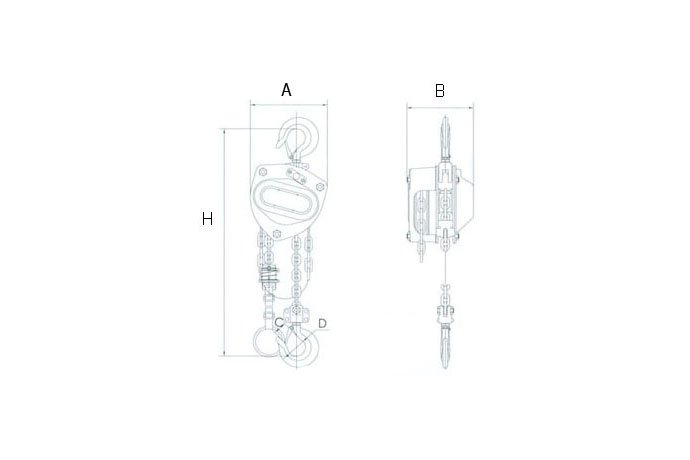

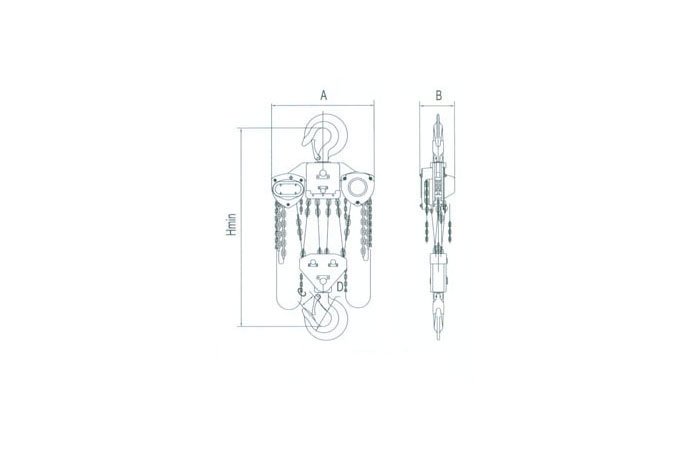

Model Capacity (Ton) Std Lift (m) Running Test Load Headroom (mm) Load Chain Dia+pitch No. of falls Effort to required Lift max load(N) Dimension (mm) A B C D N.W. (Kg) Packing Size Extra weight per meter (Kg）
MCH-A025 0.25 2.5 0.3125 280 4×12 1 226 121 114 24 31 6.5 23×16×15 0.81
MCH-A050 0.5 2.5 0.625 345 5×15 1 235 148 132 25 31.5 9.3 30×17×18 1
MCH-A100 1 2.5 1.25 376 6×18 1 245 172 151 30 37.5 12.2 32×18×19 1.29
MCH-A150 1.5 2.5 1.875 442 7×21 1 255 196 173 33 42.5 16.5 37×20×24 1.61
MCH-A200 2 2.5 2.5 470 8×24 1 324 210 175 35 45 19.5 37×20×24 1.92
MCH-A300 3 3 3.75 548 10×28 1 363 255 205 40 50 32 43×40×30 2.68
MCH-A500 5 3 6.25 688 9×27 2 353 280 189 42 53 41.1 47×44×35.5 4.1
MCH-A750 7.5 3 9.375 765 9×27 3 373 433 189 56 85 61.6 62×47×39.5 6.86
MCH-A750 7.5 3 9.375 765 9×27 3 373 433 189 56 85 61.6 62×47×39.5 6.86
MCH-A1000 10 3 12.5 765 9×27 4 380 463 189 56 85 75.7 53×51×46.5 7.73
