Permanent Magnet Lifter

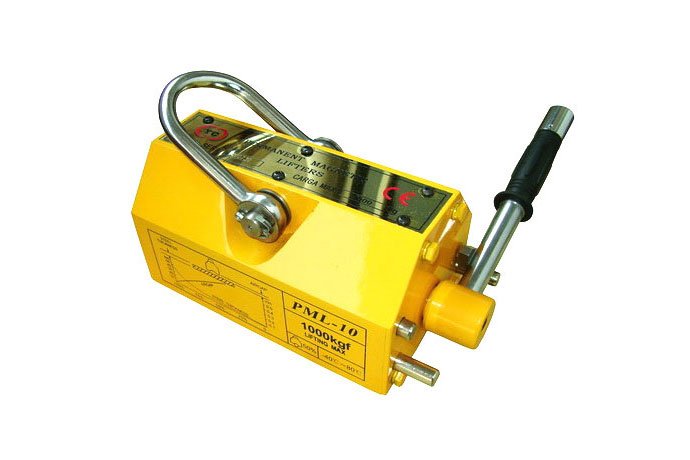

Permanent Magnet Lifter PML-A series

MIT permanet Magnet Lifter PML-A series is composed of Nd-Fe-B permanent magnetic material with high performance ferromagnetic system. The handle's movement changes the magnetic force of the ferromagnetic system to achieve adsorption and release to the workplace. There is a groove at the bottom for holding corresponding cylindrical objects. The force magnet guarantee the indefinlte high degree of concentration also the stable strengh.MIT permanet magnet lifter mainly uses in the hoisting progress with hoisting work place, safe and reliable operation, the compact light weight, it is widely used in factroy, warehouse, in transportation profession. Permanet magenet lifter improve loading and unloading easier.

Features :

Use for flat and round steel material handling
Packed with the highest quality rare earth neodymium magnetic material
High lift capacity
Ease of operation
Low weight ... easy to move
No power consumption
Handle locks in "On or Off" positions to prevent unintentional operation
Meets all the requirements of ANSI/ASME B30.20 (safety standard)
MIT Magnets can lift Round Bar, Pipe, and Flat Plates easily.

Technical Parameters

Download Technical Parameters

Technical Parameters

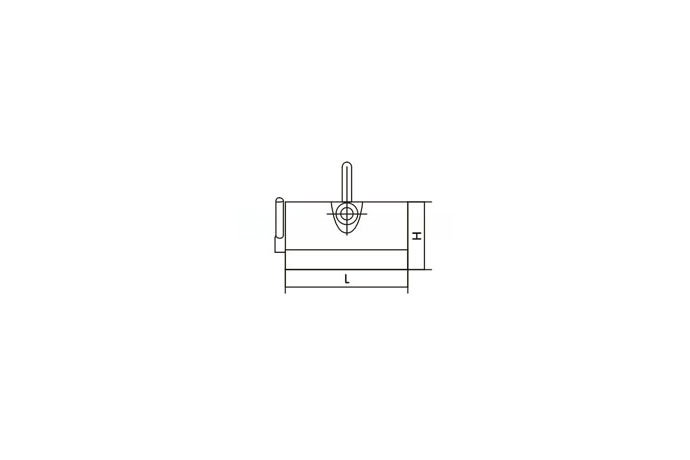

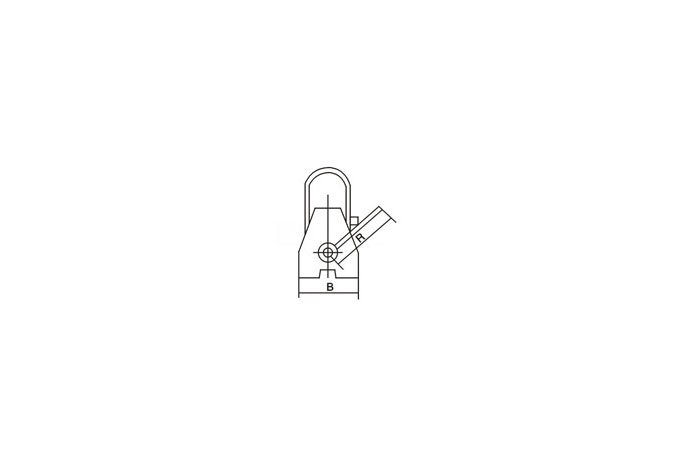

Model Reted Lifting Capacity(KG) Max Breakaway force(KG) Dimensions(mm) L B H R N.W (KG)
PML-A10 100 300 90 63 68 145 3
PML-A40 400 1200 160 95 180 160 11
PML-A60 600 1800 220 115 125 230 20
PML-A100 1000 3000 260 145 145 280 40
PML-A150 1500 3750 310 145 145 280 48
PML-A200 2000 5000 340 160 165 410 60
PML-A300 3000 7500 420 185 185 510 90
PML-A400 4000 10500 480 200 200 510 120
PML-A500 5000 15000 580 300 300 650 400
