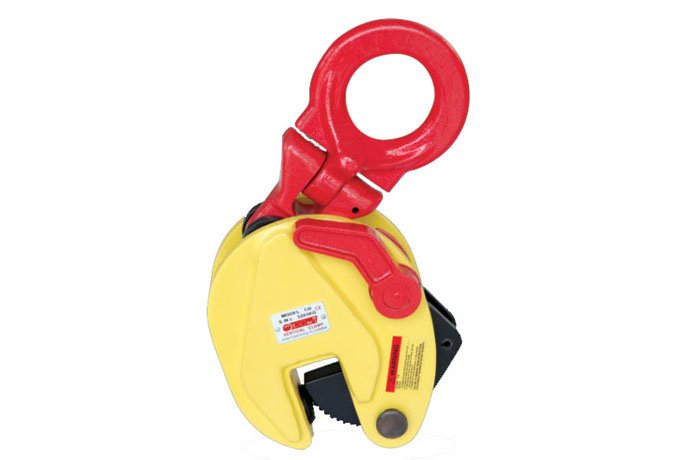

Vertical Lifting Clamps VLC-A series

MIT vertical Lifting clamps VLC-A series is used for vertical lifting and transporting of steel plates and structures. This vertical lifting clamp are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.The clamp is locked in closed as well as in open position.And lifting capacity and jaw openings are clearly engraved in the body.

Features :

Compact size and lightweight

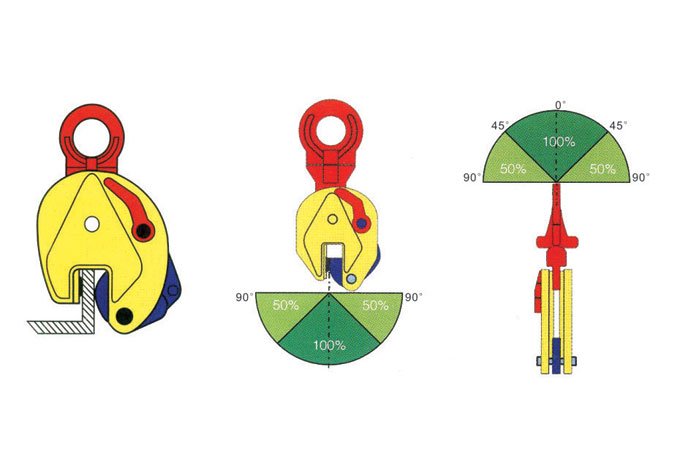

For Lifting and transporting of steel plates and structures from all positions ( Horizontal, Vertical and sidelong).

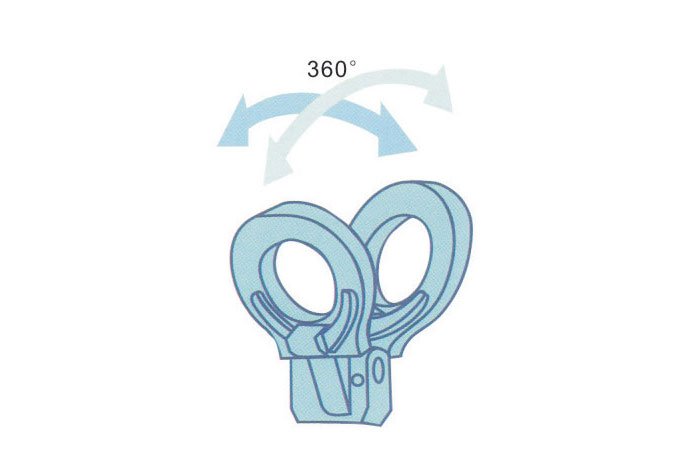

Articulated lifting shacle.
Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when as in open position.
The clamp is locked in closed as well as in open position.
Manufactured from high quality carbon steel.

Technical Parameters

Download Technical Parameters

Technical Parameters

Model Capacity(Ton) Jaw Opening(mm) Weight(Kg)
VLC-A0.8 0.8 0-15 2
VLC-A1 1.0 0-15 4
VLC-A1(B) 1.0 0-20 5
VLC-A1.6 1.6 0-20 7
VLC-A2 2.0 0-25 8
VLC-A3.2 3.2 0-25 15
VLC-A3.2(B) 3.2 0-30 15
VLC-A5 5.0 0-30 21
VLC-A5(B) 5.0 0-50 23
VLC-A8 8.0 0-45 37
VLC-A12 12.0 50-90 50
VLC-A16 16.0 60-100 65
VLC-A30 30.0 80-220 120
