Electric Wire Rope Hoist

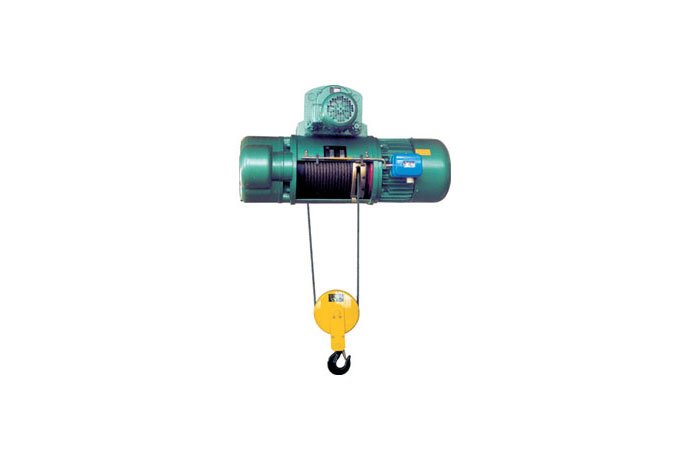

CD1/MD1 series wire rope hoists

CD1/MD1 series wire rope hoist are widely used on different kinds of cranes such as single girder bridge crane, double girder bridge crane, and gantry crane, the hoist is popular by small size and smoothly operated.

Detail specification :

Motor:Taper type rotor motor with braking, it hs big tourque.
Gearbox:Hoist gearbox has specially treated gears for high wear resistance, each geared shaft assembly is supported on ball or roller bearings
Low Voltage:Power to Pendant control reduced to 24V,36V,or 48V low voltage for safer operation.
Rope guide:It is in two halves and encircles the drum completely to ensure safety.
Load Hook:Hot forget high tensile steel, rigid and durable, fitting with safety latch to assure safe lifting.
Limit Switch:Up/Down Limit switch fitted as both top and botton ends, shuts off power automatically to prevent load chain from running out.

Technical Parameters

Download Technical Parameters

Technical Parameters

Model CD1 MD1
Lifting Capacity(t) 0.5ton 1ton 2ton 3ton 5ton 10ton 16ton
Lifting Height(m) 691218 6912182430 6912182430 6912182430 6912182430 6912182430 69121824
Lifting Speed(m/min) 8,0.8/8 8,0.8/8 8,0.8/8 8,0.8/8 8,0.8/8 7,0.7/7 3.5,0.35/3.5
RunningSpeed(m/min) 20 20 20 20 20 20 20
Wire Rope
Nominal diameter(mm) 5.1 7.4 11 13 14 15 18
Structure 6X19+NF 6X37+NF 6X37+NF 6X37+NF 6X37+NF 6X37+NF 6X29+NF
Intension rate (Mpa) 1770 1670 1670 1670 1770 1770 1870
I Beam Track Type(GB/T706-1998) 16 ˜ 28b 16 ˜ 28b 20a ˜ 45b 20a ˜ 45b 28a ˜ 63b 28 ˜ 63b 36a ˜ 63c
Loop Track Minimum Radius 1.5 1.5234 22.534 22.534 22.534 2.53.5464.59 3.5467.59
Lifting motor
Model ZD121-4
ZDS10.2/0.8 ZD122-4
ZDS10.2/1.5 ZD131-4
ZDS10.4/3.0 ZD132-4
ZDS10.5/4.5 ZD141-4
ZDS10.8/7.5 ZD151-4
ZDS11.5/13 ZD151-4
ZDS11.5/13
Capacity(kw) 0.8 1.5 3 4.5 7.5 13 13
R.P.M 1380 1380 1380 1380 1440 1440 1440
Phase 3 3 3 3 3 3 3
Voltage(v) 380 380 380 380 380 380 380
Current(A) 2.4,72/2.4 4.3,0.72/4.3 7.6,1.25/7.6 11,1.4/11 18,2.4/18 30,4.3/30 30,4.3/30
Frequency(Hz) 50 50 50 50 50 50 50
Running Motor
Model ZDY111-4 ZDY111-4 ZDY111-4 ZDY112-4 ZDY21-4 ZDY21-4 ZDY21-4
Capacity(kw) 0.2 0.2 0.4 0.4 0.8 0.8X2 0.8X2
Speed(r/min) 1380 1380 1380 1380 1380 1380 1380
Phase 2 3 3 3 3 3 3
Voltage(v) 380 380 380 380 380 380 380
Current(A) 0.72 0.72 0.72 1.25 2.4 2.4X2 2.4X2
Frequency(Hz) 50 50 50 50 50 50 50
Joint Times 120 120 120 120 120 120 120
Classification Grade M3 M3 M3 M3 M3 M3 M3

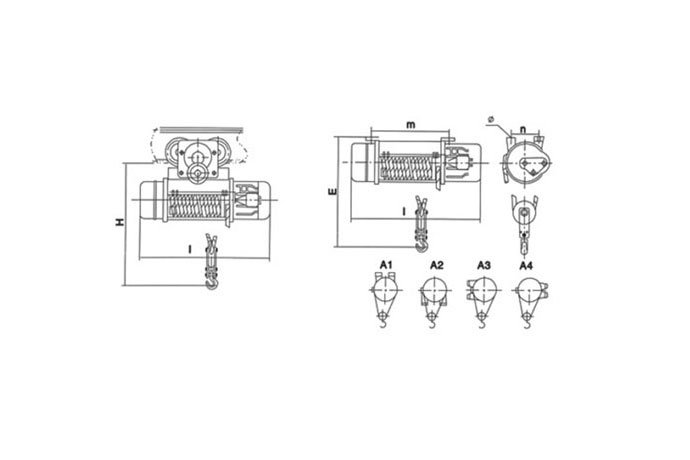

Basic dimenstion # 2%(mm)
H ˜560˜650 ˜685˜780 ˜850˜950 ˜954˜1057 ˜1212˜1272 ˜1320- ˜1900-
L1 126 196 187 230 274 303 303
L2 228 / 225 269 / 266 279 314 / 343 380 / 377 429 / 820 429 / 820
L 628714772916 925711769913 772867965116113571553 691291218 691218 691218 691218 691218 691218 691218 691218 691218 691218 691218
M 691218 6912182430 6912182430 6912182430 6912182430 6912182430 69121824
N 190 196 240 240 320 376 376
H 120 124 155 155 203 243 243
Ø 14.5 19 23 23 31 38 38
E 490 584 749 749 1017 1614 1614
F 355/508 368/205 368/529 368/529 480/690 312 312
